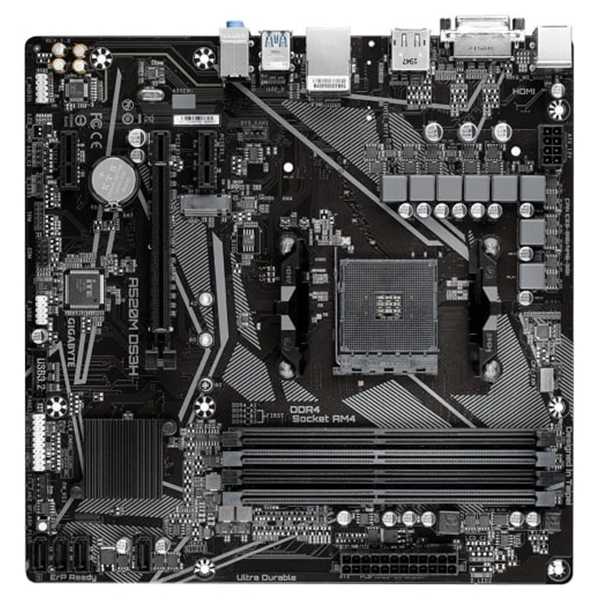

Gigabyte A520M DS3H Pure Digital VRM Solution DDR4 Motherboard Price in Pakistan
CPU

1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
(Please refer “CPU Support List” for more information.)
Chipset

1. AMD A520
Memory

1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Onboard Graphics

Integrated Graphics Processor:

1. 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio

1. Realtek® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN

1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots

1 x PCI Express x16 slot, integrated in the CPU:

1. Supporting PCIe 3.0 x16 mode
1 x PCI Express x1 slot, integrated in the Chipset:
1. Supporting PCIe 3.0 x1 mode
Storage Interface

1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:

1. Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
1. Supporting for RAID 0, RAID 1, and RAID 10
USB

CPU:

1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x M.2 Socket 3 connector
6. 4 x SATA 6Gb/s connectors
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x USB 3.2 Gen 1 header
10. 1 x USB 2.0/1.1 header
11. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
12. 1 x Clear CMOS jumper

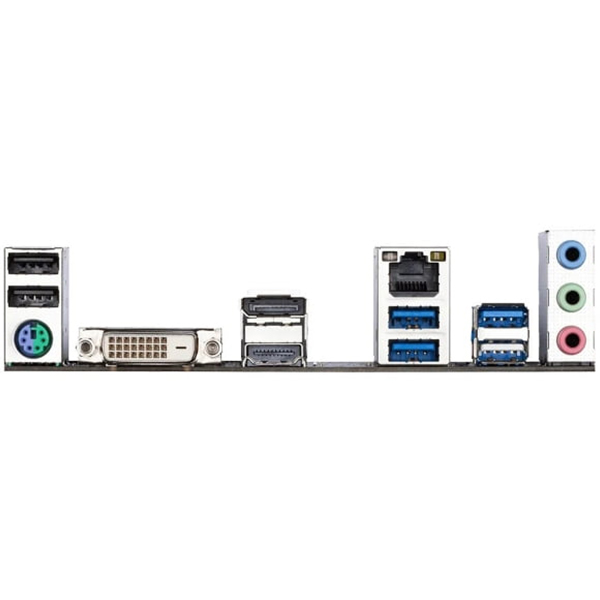

Back Panel Connectors

1. 1 x PS/2 keyboard/mouse port
2. 1 x DisplayPort
3. 1 x HDMI port
4. 4 x USB 3.2 Gen 1 ports
5. 2 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks
I/O Controller

1. iTE® I/O Controller Chip
H/W Monitoring

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS

1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features

1. Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Smart Backup
System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install
Bundled Software

1. Norton® Internet Security (OEM version)
2. LAN bandwidth management software
Operating System

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Form Factor

1. Micro ATX Form Factor; 24.4cm x 24.4cm
