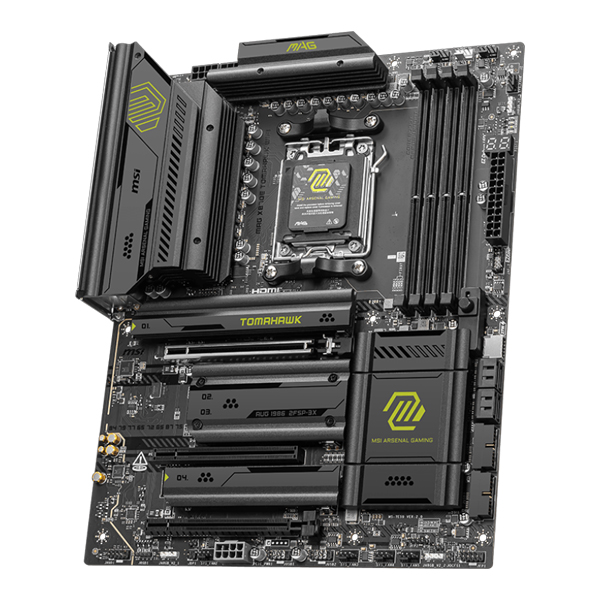

MSI MAG MAG X870E TOMOHAWK WIFI AM5 AMD X870E SATA 6Gb/s M.2 DDR5 Wi-Fi 7 5G LAN ATX Motherboard

Highlights

  • AMD X870E
  • Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
  • 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
  • Lightning USB 40G: Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.
  • EZ PCIe Release: A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
  • EZ M.2 Shield Frozr II: The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
  • Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
  • maximum transfer speed.
  • 5G Network Solution: Featuring premium 5G LAN to deliver better network experience.
  • Wi-Fi 7: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
  • Audio Boost 5: Isolated audio with a high quality audio
Warranty2 Years

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₨135,000.00.Current price is: ₨115,000.00.

17 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

MSI MAG MAG X870E TOMAHAWK WIFI AM5 AMD X870E SATA 6Gb/s M.2 DDR5 Wi-Fi 7 5G LAN ATX Motherboard Price in Pakistan

ChipsetAMD X870E
CPUSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/sSupports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only** CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics
**Graphics specifications may vary depending on the CPU installed
Slot3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
AudioRealtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output
Storage4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6GM.2_1 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)M.2_2 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

*The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.
**USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.

RAID•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
•Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
*RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.
USB4x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)
LAN1x Realtek® 8126 5G LAN
Internal IO1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTHWi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE4x EZ Debug LED
1x EZ Digit Debug LED
BACK PANEL PORTS
  1. Clear CMOS Button
  2. USB 10Gbps Type-A
  3. USB 5Gbps Type-A
  4. USB 2.0
  5. 5G LAN
  6. Wi-Fi / Bluetooth
  7. Audio connectors
  8. Flash BIOS Button
  9. HDMI™
  10. USB 40Gbps Type-C
  11. USB 10Gbps Type-C
  12. USB 10Gbps Type-A
OPERATING SYSTEMSupport for Windows® 11 64-bit
