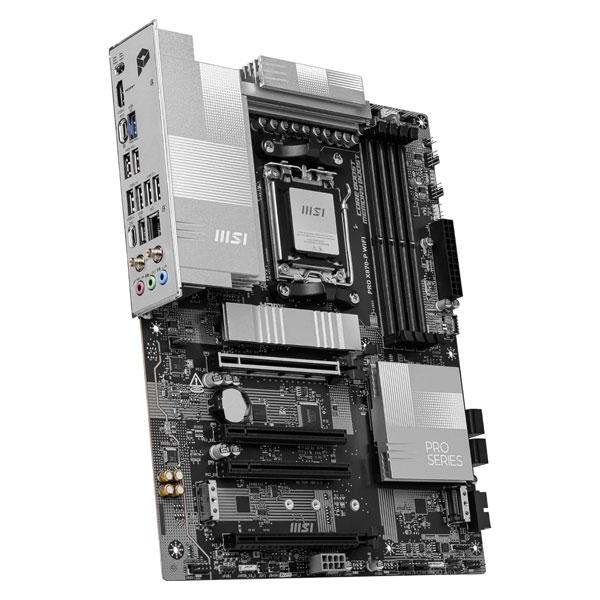

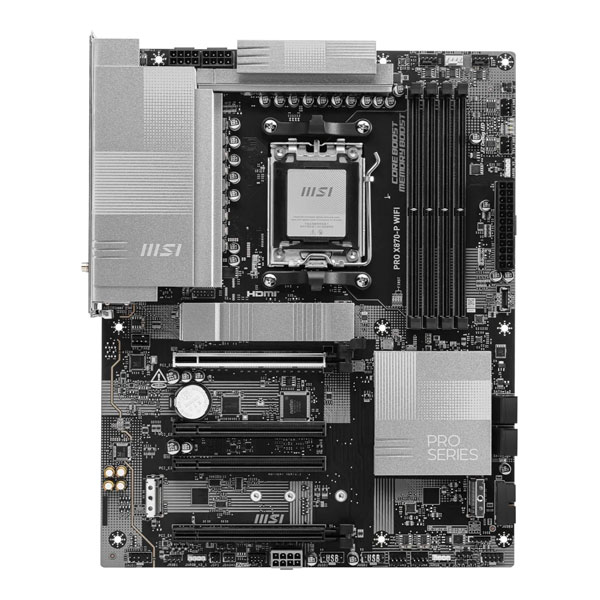

MSI PRO X870-P WIFI ATX AM5 AMD Wi-Fi 7,USB 4.0 Motherboard

  • Wi-Fi 7:The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps.
  • Lightning USB 40G: Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.
  • 5G Network Solution: Featuring premium 5G LAN to deliver better network experience
  • Ez PCIe Clip II: Allows for easy removal 5G LAN to deliver better network experience.
  • Triple M.2 Connectors: Onboard 3x M.2 connectors with PCIe 4.0 solution, strengthened by M.2 Shield Frozr.
  • DDR5 Memory:A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
  • Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
  • Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₨102,000.00.Current price is: ₨99,000.00.

Add to compare
Add to wishlist
16 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description

MSI PRO X870-P WIFI ATX AM5 AMD Wi-Fi 7,USB 4.0 Motherboard Price in Pakistan

Model
Brand MSI
Model PRO X870-P WIFI
Supported CPU
CPU Socket Type  AM5
CPU Type Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipsets
Chipset  AMD X870
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard DDR5 5600+ (OC)
Maximum Memory Supported 256GB
Channel Supported  Dual Channel
ECC Supported Supports ECC UDIMM memory (non-ECC mode)
Buffer Supported Un-buffered
Memory Feature Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
– 1DPC 1R Max speed up to 8200+ MT/s
– 1DPC 2R Max speed up to 6400+ MT/s
– 2DPC 1R Max speed up to 6400+ MT/s
– 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
Expansion Slots
PCI Express 5.0 x16 PCI_E1 supports up to PCIe 5.0 x16 (From CPU)
PCI Express x4 PCI_E4* slot (From X870 chipset)
PCI_E4 supports up to PCIe 4.0 x4
PCI Express x1 PCI_E2 & PCI_E3 (From Chipset X870, ASM2806) Supports up to PCIe 3.0 x1
Other Slots * PCI_E4 & M2_3 share the bandwidth. Default that PCI_E4 slot runs x2 when installing device into the M2_3 slot. Otherwise, PCI_E4 slot will run x4 when M2_3 has no device.
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 M2_1 slot (From CPU)
Supports up to PCIe 5.0 x4
Supports 2260/2280 storage devices

M2_2 (From X870 chipset)
Supports up to PCIe 4.0 x4
Supports 2280/110 storage devices

M2_3 slot (From X870 chipset) *
Supports up to PCIe 4.0 x2
Supports 2260/2280 storage devices

* PCI_E4 & M2_3 share the bandwidth. Default that PCI_E4 slot runs x2 when installing device into the M2_3 slot. Otherwise, PCI_E4 slot will run x4 when M2_3 has no device.
Onboard Audio
Audio Chipset  Realtek ALC897
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Realtek 8126VB
Max LAN Speed 5Gbps
Rear Panel Ports
Back I/O Ports 1 x Flash BIOS button & Clear CMOS bottom
1 x HDMI port
1 x USB 40Gbps Type-C port (From CPU)
1 x USB 5Gbps Type-A port (1x from CPU, 1x from Chipset X870)
2 x USB 10Gbps Type-A ports (From Chipset X870)
4 x USB 2 Type-A ports (From GL850)
1 x 5G LAN (RJ45) port
1 x USB 20Gbps Type-C port (From Chipset X870)
2 x Wi-Fi Antenna connectors
3 x Audio jacks
Internal I/O Connectors
Onboard USB AMD X870 Chipset
– 1 x USB 10Gbps Type-C connector
– 1 x USB 5Gbps connectors
Supports additional 2 USB 5Gbps ports
– 2 x USB 2.0 connector
Supports additional 4 USB 2.0 ports
Other Connectors Fan Connectors
– 1x 4-pin CPU fan connector
– 1x 4-pin pump fan connector
– 6x 4-pin System fan connectors
– 1x 7-pin JAF1

System Connectors
– 1x Front panel audio connector
– 2x System panel connectors
– 1x Chassis Intrusion connector
– 1x Tuning Controller connector

Jumpers
– 1x Clear CMOS jumper
Physical Spec
Form Factor ATX
LED Lighting 1 x 4-pin RGB LED connector
3 x 3-pin ARGB_V2 LED connectors
4 x EZ Debug LED
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x 24-pinPower Connector (ATX_PWR)
2 x 8-pin Power Connector (CPU_PWR)
1 x 8-pin Power Connector (PCIE_PWR)
Software Feature
BIOS Feature 1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.5
Multi-language
Software Drivers
MSI Center
7-ZIP
Acrobat
Adobe Creative Cloud
Adobe Redeem LauncherDropbox
AIDA64 Extreme-MSI Edition
CPU-Z MSI GAMING
Norton 360
Realtek Console
Features
Features MSI Center Features
– Mystic Light
– Frozr AI Cooling
– User Scenario
– True Color
– Live Update
– Hardware Monitoring
– Super Charger
– Devices Speed Up
– Smart Image Finder
– MSI Companion
– System Diagnosis

Performance
– Core Boost
– Dual CPU Power
– Memory Boost
– Lightning Gen 4 PCI-E Slot
– Lightning Gen 4 M.2 Slot
– 2oz Copper thickened PCB

DIY Friendly
– PCI-E Steel Armor
– EZ DEBUG LED
– EZ LED Control

Audio
– Audio Boost

RGB Support
– Mystic Light Extension (RGB)
– Ambient Devices Support

BIOS
– Click BIOS 5
