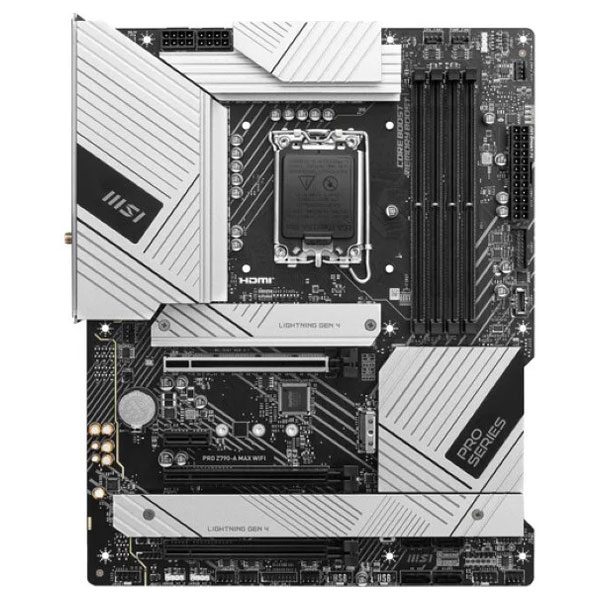

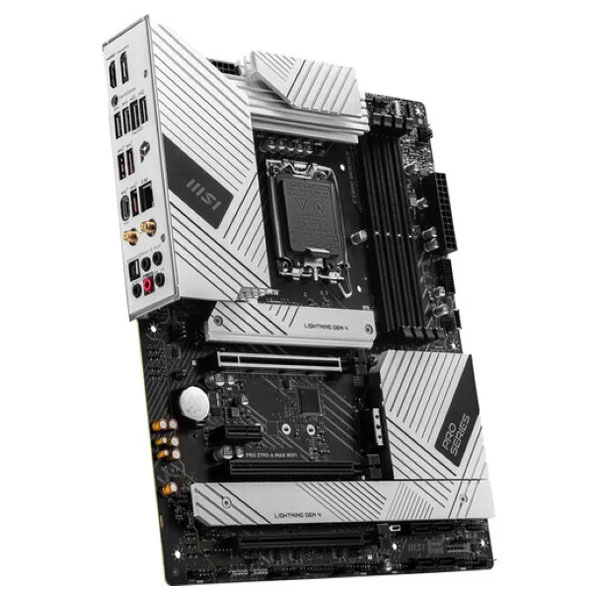

MSI PRO Z790-A MAX WIFI LGA 1700 ATX Motherboard

  • ATX Form Factor
  • Intel Z790 Chipset
  • LGA 1700 Socket
  • 4 x Dual-Channel DDR5
  • 6 x SATA III, 4 x M.2
  • PCIe 5.0 x16, PCIe 4.0 x16 (x4)
  • PCIe 3.0 x16 (x1), PCIe 3.0 x1
  • 2.5 GbE LAN, Wi-Fi 7, & Bluetooth 5.4
  • USB 2.0, 3.2 Gen 1, Gen 2, Gen 2×2 Ports
  • Windows 10 & 11 Support

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₨87,000.00.Current price is: ₨86,000.00.

Add to compare
Add to wishlist
20 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description

MSI PRO Z790-A MAX WIFI LGA 1700 ATX Motherboard Price in Pakistan

Model
Brand MSI
Model PRO Z790-A MAX WIFI
Supported CPU
CPU Socket Type  LGA 1700
CPU Type Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Chipsets
Chipset  Intel Z790
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
– 1DPC 1R Max speed up to 7800+ MHz
– 1DPC 2R Max speed up to 6600+ MHz
– 2DPC 1R Max speed up to 6400+ MHz
– 2DPC 2R Max speed up to 5600+ MHz
Maximum Memory Supported 192GB
Channel Supported  Dual Channel
Memory Feature Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Expansion Slots
PCI Express 5.0 x16 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI Express 4.0 x16 PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express 3.0 x16 PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI Express x1 PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage Devices
SATA 6Gb/s  6 x SATA 6Gb/s
M.2 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
SATA RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Audio
Audio Chipset  Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Intel 2.5Gbps LAN
Max LAN Speed 2.5Gbps
Wireless LAN Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
Bluetooth Yes

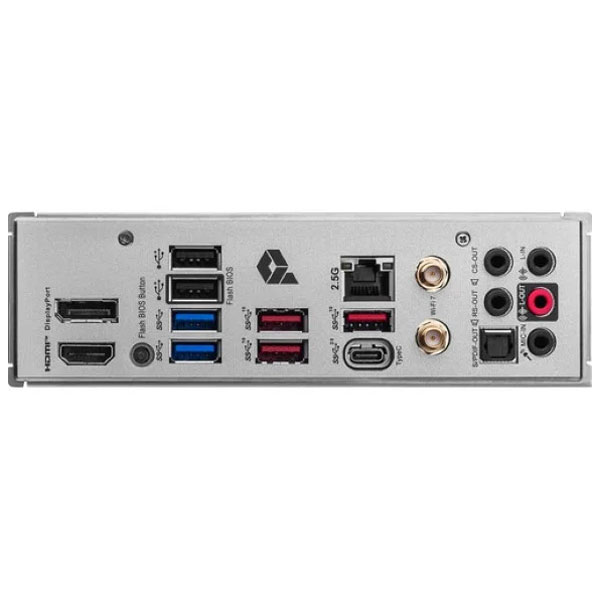

Rear Panel Ports
Back I/O Ports 1 x DisplayPort
2 x USB 2.0
1 x 2.5G LAN
2 x Wi-Fi / Bluetooth Antenna Bracket
5 x Audio Connectors
1 x HDMI
1 x Flash BIOS Button
2 x USB 3.2 Gen 1 5Gbps (Type-A)
3 x USB 3.2 Gen 2 10Gbps (Type-A)
1 x USB 3.2 Gen 2×2 20Gbps (Type-C)
1 x S/PDIF-OUT
Internal I/O Connectors
Onboard USB 4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB4 card connector (JTBT_U4_1, supports RTD3)
Other Connectors 1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
